About

Beamline layout

The source of BioXAS Imaging beamline is an in-vacuum undulator producing a high spectral brilliance. The overall design of the beamline consists of a collimating mirror, a fixed-exit double crystal monochromator (DCM), a post-monochromator focusing mirror and the Kirkpatrick-Baez (KB) mirrors for micro-focusing the beam (micro mode).

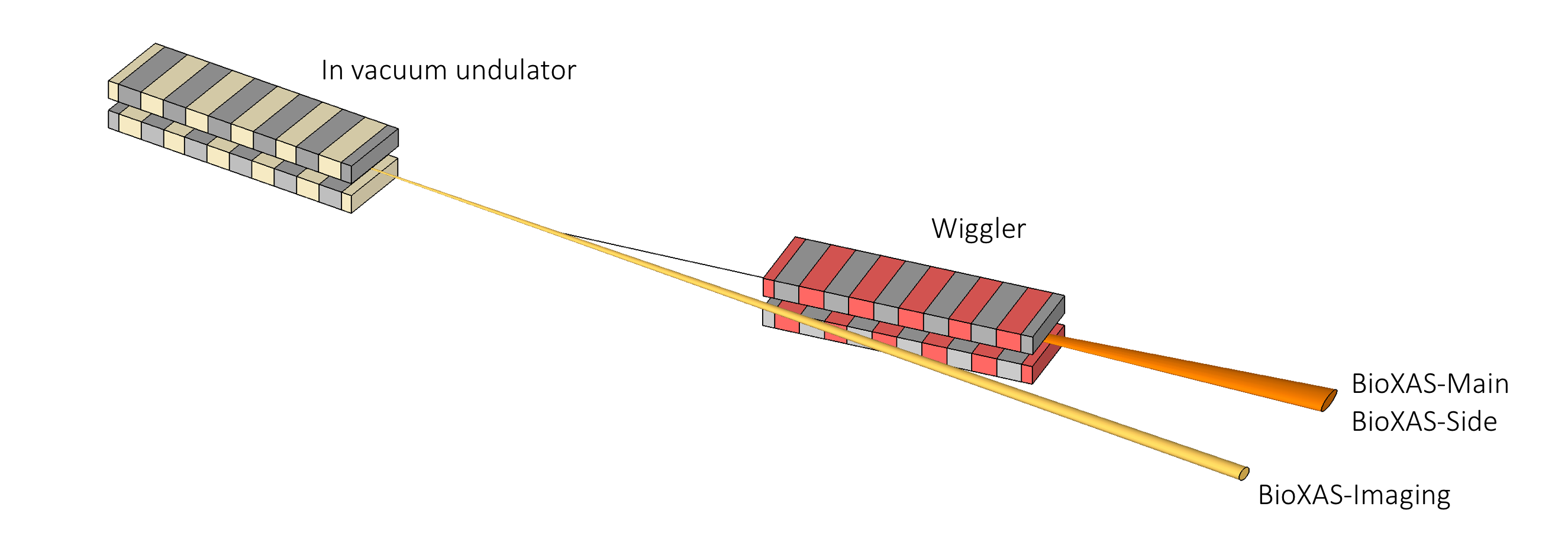

Two insertion devices, undulator and wiggler, in the BioXAS straight.

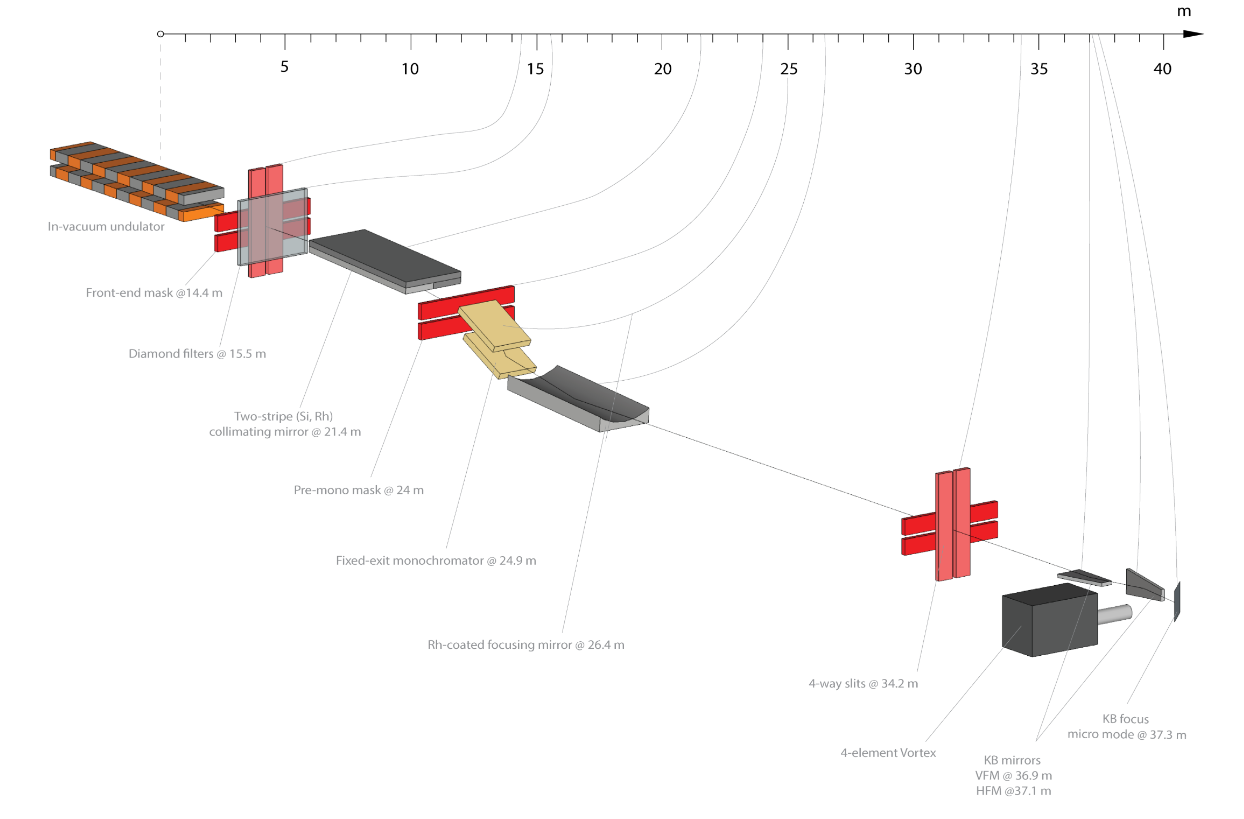

Schematic of BioXAS Primary Optics Enclosure.

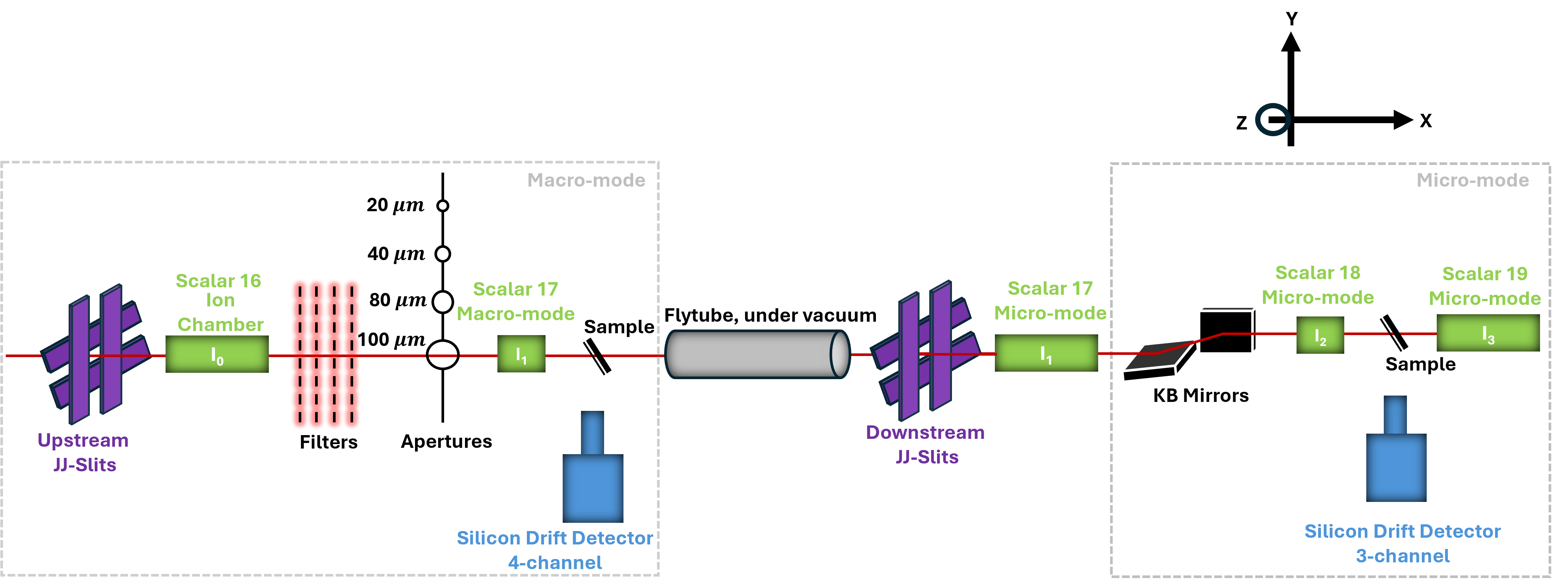

Schematic of the setup at the BioXAS Imaging beamline endstation.

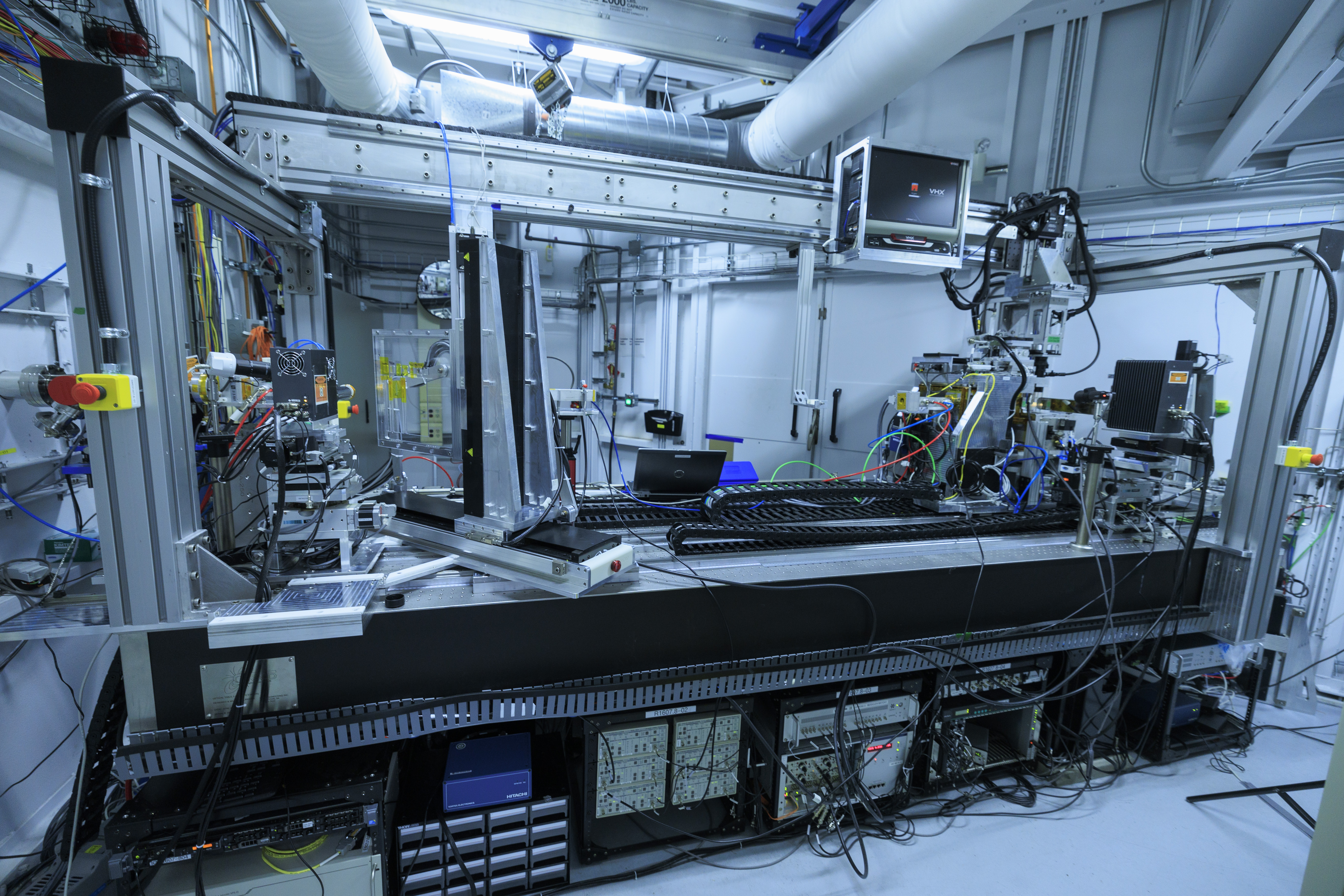

Source

  • In-Vacuum Undulator (IVU) (Bruker ASC)

  • Minimum Gap: 5.2 mm

  • Maximum Gap: 40 mm

  • Total Number of Poles: 164

  • Period: 19.1 mm

  • Total Length of Magnet Assemblies: 1600 mm

  • Peak field: 1.011 T

Beam

  • Minimum Energy: 6 keV

  • Maximum Energy: 21 keV

Optics

  • Pre-mono cyllindrical collimating mirror (M1): Si substrate with two reflective coatings (Si and Rh)

  • Post-mono toroidal focusing mirror (M2): Si substrate with Rh coating

  • KB mirrors: Si substrate with Rh coating

Monochromator

  • LN2-cooled constant exit height design (Kohzu)

  • Si(111)

  • Si (220), phi=0 deg

Detectors

  • one 4-element Silicon Drift X-ray detector (Vortex-ME4, SII NanoTechnology)

  • one 3-element Silicon Drift X-ray detector (Vortex-ME3)

  • two single element Silicon Drift X-ray detectors (Vortex-EM, SII NanoTechnology)
